Large Digital Cutting Table for Non-Stop Production

Esko has launched the Kongsberg C66, a digital finishing table designed for short run production of corrugated applications. Built on decades of Kongsberg table innovations integrated with Esko software solutions, the Kongsberg C66 is said to be the largest digital cutting table for heavy-duty corrugated production. It was developed based on market demand as part of Kongsberg’s robotics programme. Its combination of size, speed and precision on heavy-duty rigid materials makes it a flexible and effective alternative to conventional diecutting equipment for short run production of packaging and POP displays.

The Kongsberg C66 can run at 100 m/min. It can handle either manual multi-zone production of large 2.2m x 3.2m (87in x 126in) sheets or single-zone production of large 2.5m x 4.8m (98in x 189in) corrugated sheets. This makes it ideally suited for the production of protective packaging with a maximum sheet size of 2.5m x 4.8m (corrugated containers made from HD double-wall or triple-wall corrugated and packaging and POP displays). The C66 is also capable of processing other materials required in the protective packaging environment, including foam cushioning materials.

The Kongsberg C66’s 3210mm x 4800mm (W x L) work area supports both large-format and multi-zone production. Its Carbon Composite Traverse is extremely rigid, enabling high speed, fast acceleration and high quality creasing with minimal deflection. It also delivers up to 40% higher performance than other 3 meter wide XY finishers. It allows the C66 to run at full production speed on much larger material without losing accuracy. The larger Kongsberg tables can be set up for MultiZone production, which maximizes production efficiency by ensuring non-stop material processing. While one zone of the table is in action, an operator can set up the other zone by clearing the finished piece and loading a new sheet. While the operator works and prepares one zone, the machine works at the other zone, with automatic zone-change based on a simple operator handshake.

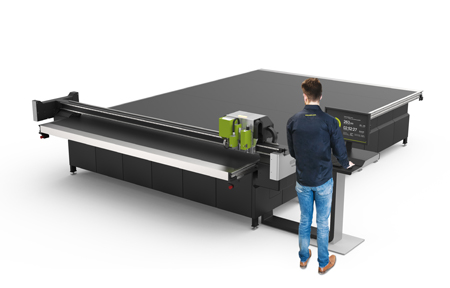

Kongsberg C66

The i-cut Production Console (iPC) drives the table’s functionality and includes capabilities such as camera control, machine set up, tool recognition, calibration and tool adjustments. Designed to guide and support the operator, it incorporates a number of logical, user-friendly features including an icon-based graphical interface with colour-coded alerts and updates. Combined with Device Manager, it offers the ability to follow production progress from a distance. Operators can prepare one job while producing another, increasing efficiency even more. The i-cut Production Console also allows estimation of cutting time based on job characteristics for more efficient scheduling.

There is a wide variety of optional tool units available as well. These can be quickly mounted and prepared to cut and finish a specific job, assuring exceptional quality and prompt delivery. “The Kongsberg C66 was designed to meet market demand for larger format solutions for finishing rigid materials,” explains Tom Naess Esko’s Senior Product Manager. “It boosts productivity and, when combined with robotics, ensures non-stop production. This allows for fast, efficient completion of heavy-duty packaging and shorter runs without compromising on quality. By moving shorter runs to the Kongsberg C66, operations can eliminate the time and cost associated with conventional diecutting solutions that become unwieldy when dealing with short runs and compressed cycle times.”

The first company to install the Kongsberg C66 is the French printing and packaging specialist Cartonéo. The 100-year-old multi-site group serves a broad range of markets and sectors including food, automotive, cosmetics, wine and spirits, publishing and pharmaceutical. Edmond Perrier, Cartonéo’s CEO, comments, “This investment followed our decision to invest in a digital printing press, to cost effectively manufacture large format printed packaging and displays in a variety of run lengths. The new press has enabled us to win several key contracts, which is why we also added the integrated production solution to complete the work to a high standard. With both, we are now very busy and competitive in the market for short run production of display materials.”
